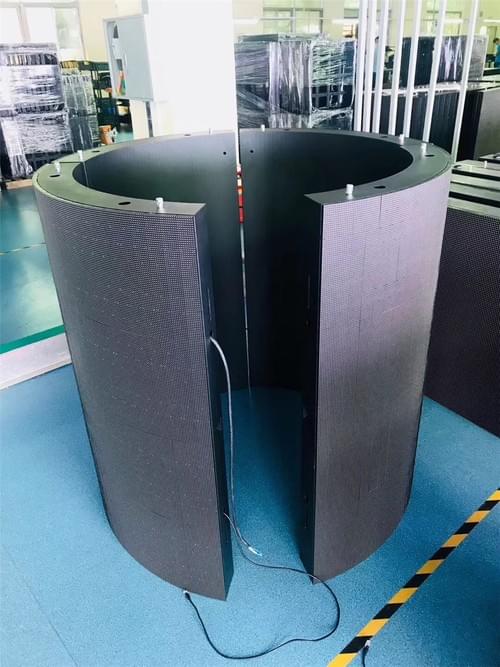

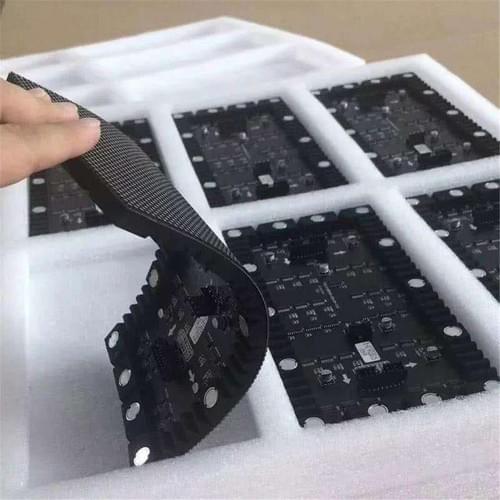

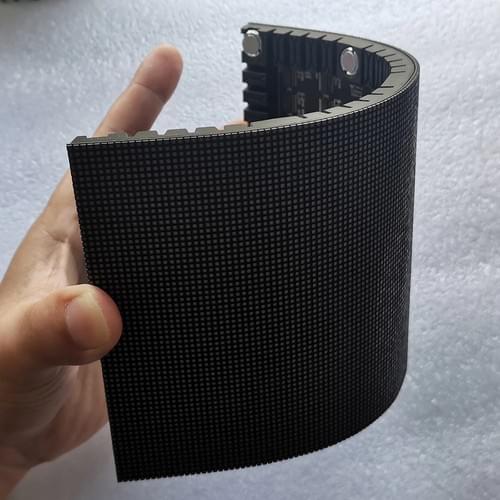

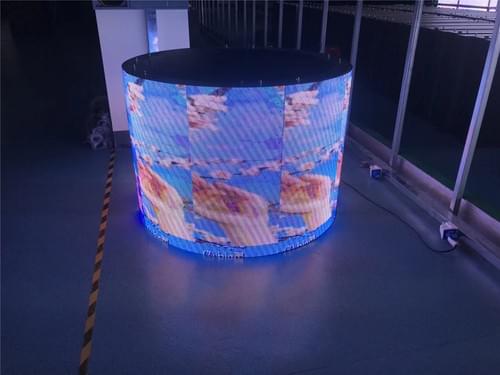

P1.875 LED Soft Module 120x240mm, P1.875 Flexible LED Display Panel, Indoor Full-color Curved Module
$48.00
Module Pixel: 128*64 dots
Refresh Rate > 1920hz
Brightness: 700 nits
Technical Specification of P1.875mm:
SMD1515 3 in 1
LEDs configuration
Module dimensions (mm): 240x120
Pixel density(dots/㎡): 250000
Brightness(cd/sqm,nit): 700 nits(adjustable)
Brightness adjustment(dimming): 100 grade auto/manual-adjustment
View angle(degree)(50% brightness): Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)
Readability viewing angle: Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)
Refresh rate(Hz): >1920 Hz(adjustable)
Interface port: DVI interface(DVI connector)
Input signal: VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade: IP31 front side/IP31 backside
Lifetime (hours)(50% brightness): 100,000 hours
Signal transmission direction: Horizontal
Operating temperature (Celsius degree): -10~+40'
Storage temperature (Celsius degree): -15~+50'
Control mode: Synchronous & asynchronous available
Communication options: Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power: Input: DC 5V, single phase (50-60Hz)
Maximum power consumption (W/SQM): 880
Average power consumption (W/SQM): 352
Screen operation mode (scan/static): 1 / 32
Module configuration (Pixels quantities of the module): 128*64 dots
