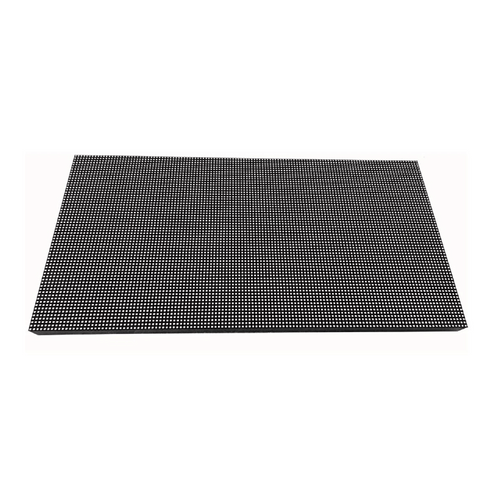

P2.5 Outdoor Led Display Video Wall 128x64 Pixels 320x160mm RGB LED Sign Dot Matrix Led Module Panel
$69.98
1x P2.5 Outdoor 320*160mm LED Module
1x 20cm Pin Cable
1x 5V Power Cable
4x M4 Magnets
Outdoor P3 LED display screen module 192X192mm
Specification:
Module Size: 192mm x 192mm.
Module Pixel Pitch: 3mm.
Module Resolution: 64dotsX64dots.
Pixel Density: 111111dots/sqm.
Color Configuration: 1R1G1B 3 in 1.
LED Package: SMD1921.
Drive Mode: 1/16Scan Constant Current.
Standard Cabinet Size: 576mmX576mm.
Cabinet Weight: 10.5KG.
Brightness: 3000-7000 cd/sqm(adjustable).
Best Viewing Distance: 4m-80m.
Drive IC: 2037 or same level.
Refresh Rate: 1920HZ.
Frame Rate: 120frame/sec.
Grey Scale: 16.7M colors.
Interface: HUB75E.
Viewing Angle: H: 160°; V:160°.
Color Temperature: 256 level(adjustable).
Power Input: DC5V.
Ave Power Consumption: 300W/sqm.
Storage Temperature: -30~+70 degree.
Working Temperature: -20~+50 degree.
IP grade: IP65(waterproof).
Operating Humidity: 10%~95%.
Blind Spot Rate: <1/10000.
Life Span: >100,000 Hours.
Warranty: 3 Years.
Control Method: Synchronous, Asynchronous, 3G,4G,WIFI,USB.
Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC etc.
Certificate: CE, FCC, PSE, RoHS.
